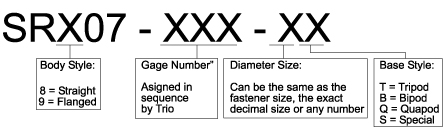

Testing & Measuring l Trulok Gages l Countersink Depth Gages l Depth SR907-XXX-XX

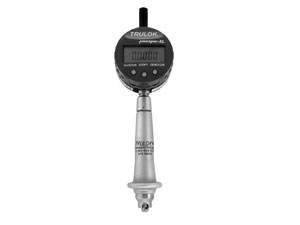

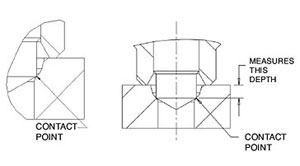

			A high precision digital gage for quick and accurate measurement of the double countersink depth at a specific contact diameter. The SR907 depth gage has a fixed diameter probe with a chamfered end that contacts the inside wall of the countersink at a preset depth (see detail). This gauge can be used to set cages or micro-stops. The use of this gauge will reduce rework by checking the countersink depth before installing the fastener.
			Features: • Measuring accuracy .0001 inch (.0025mm) • Direct contact inside the countersink walls • Direct reading, no calculations or charts necessary • Large base configurations available for curved surfaces • Accurate, repeatable and reproducible • SPC ready via data port cable • Ease of use with minimal training • Eliminate costly rework • Gage and set block calibrated to NIST traceable standards • Unique serial numbers on gages, set blocks and indicators • The components of our gages are made of heat treated wear resistant tool steels and micro finished to ensure accurate and trouble free operation • LCD display with rotating bezel • Inch/ mm mode toggle capable • SPC data output ready via data port • Upper and lower tolerance capable • User selectable resolution (Mahr-Federal) • Auto power off after 15 minutes of inactivity (Mahr-Federal) • Lockout of setup preset (access key - Mahr-Federal, computer -Mitutoyo) • Choice of indicators: Mahr-Federal, Mitutoyo or Sylvac (please advise of your choice)
